HDMI音频分离器 HDMI TO HDMI+ Audio (SPDIF+R/L)信号转换器
HDMI TO HDMI音频分离器可以把HDMI信号源连接到单个的HDMI显示设备（如电视、投影仪）并独立输出立体声+SPDIF信号，实现HDMI信号的音频同步分离。
本公司所生产设备为以下应用提供解决方案：如对噪声、传输距离及安全有限制的场所、数据中心控制、信息分配、会议室演示以及教学环境和公司培训场所.
产品特点：
一路HDMI信号输入，转换成一路HDMI+Audio(SPDIF+R/L)输出
支持音频输出: SPDIF+模拟R/L
输入支持：最高支持1080P(50/60赫兹)
可实现音频同步分离输出，有PASS、2.0CH、5.1CH三种音频模式可选择
LED指示灯，当信号源或者信号端出于工作状态时，相应的指示灯会变亮。
无信号损失
安装简单
外置DC5V/1A规格的电源
产品规格:
HDMI分辨率24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
支持视屏色彩格式………….24bit/deep color 30bit,36bit
音频输出…………………….左右声道和光纤输出
最大传输带宽…….………………….…………..…..225MHz
最大波特率………………………………………….…….6.75Gbps
输入/输出TMDS信号……………… 0.5~1.5Volts p-p
输入/输出DDC信号…………………… 5Volts p-p (TTL)
输入线缆长度..…... ………≤15m AWG26 HDMI standard cable
输出线缆长度………………...≤20m AWG26 HDMI standard cable
最大工作电流………………………………………………….500mA
电源适配器规格……...Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
工作温度范围……..……………………….. (-15 to +55℃)
工作湿度范围…………………………5 to 90%RH (无凝缩)
尺寸(长*宽*高) …………………………….…..84.5X61.8X21(mm)
重量…..…………………………………………………135g
Feature:
One HDMI input converted to one HDMI+ Audio (SPDIF+R/L)output
Output audio supports SPDIF+R/L analog Audio Output
Input Resolution can up to 1080P(50/60Hz)
HDMI to achieve the synchronization of audio signal separation. There are PASS / 2.0CH / 5.1CH three kinds of audio mode options
LED indication when source or sink is working, LED relative to is light
No loss of quality, Installs in minutes, Need DC5V/1A power supply
Specification:
HDMI Resolution: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support Video Color Format: 24bit/deep color 30bit,36bit
Audio Output: L/R+SPDIF
Max Bandwidth: 225MHz
Max Baud Rate: 6.75Gbps
Input/Output TMDS Signal: 0.5~1.5Volts p-p(TTL)
Input/Output DDC Signal: 5Volts p-p (TTL)
Input Cable Distance: <15m AWG26 HDMI standard cable
Output Cable Distance: <20m AWG26 HDMI standard cable
Max Working Current: 500mA
Power Adapter Format: Input, AC (50HZ, 60HZ) 100V-240V; Output, DC5V/1A
Operating Temperature Range: -15 to +55 Degree C
Operating Humidity Range: 5 to 90%RH (No Condensation)
Size: 8.4 x 6.2 x 2cm
Net Weight: 212g

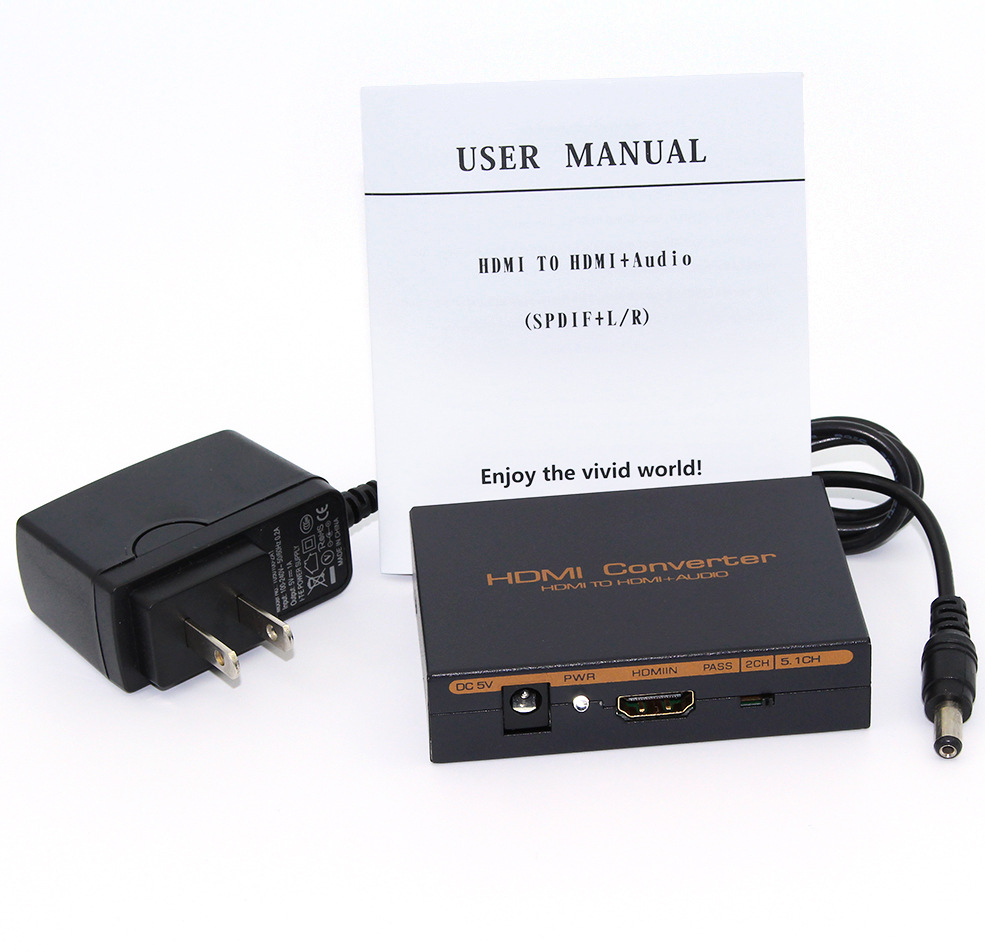

Physical Connection Interface:
DC5V: 5V DC-DC Power Interface
PWR:Power Led Status Light
HDMI IN:HDMI input interface
PASS:HDMI pass mode. The audio and video from the HDMI output, SPDIF and L/R no output
2CH: 2 channel stereo mode. The HDMI / SPDIF and L/R output stereo audio
5.1CH: 5.1 channel mode. The HDMI / SPDIF output 5.1 channel audio, L/R no output
GREEN LED:HDMI output led status light
SPDIF:SPDIF optical Output
L/R:Analog Sound Track(L/R) Output
Usage:
To use one HDMI cable to connect the HD Source with the input HDMI port.
To connect the converter HDMI output port with the HD Display.
To use one audio cable to connect the converter R/L port with the audio equipment.
To use the optical cable to connect the SPDIF port with the audio equipment.
To connect the converter with 5V DC power adaptor.
